A No-Spoil, Highly Effective Approach to Ground Improvement

Vibro Compaction is a ground improvement method for stabilizing loose granular soils and some specific fill types for in-situ densification. It significantly densifies the soil by using a down-hole probe that vibrates at very high frequencies. Together with a managed volume of water added, localized liquefaction of the soil is caused. 

  • Mitigates liquefaction 
  • Reduces settlement 
  • Highly Economical 
  • Significant depths of treatment 
  • Simpler foundation design: lowers project risk 

  • Loose soils
  • Uncompacted fill soils
  • Granular soils

  • Treat soils up to 45m deep 
  • Bearing pressure of up to 300 kPa SLS 

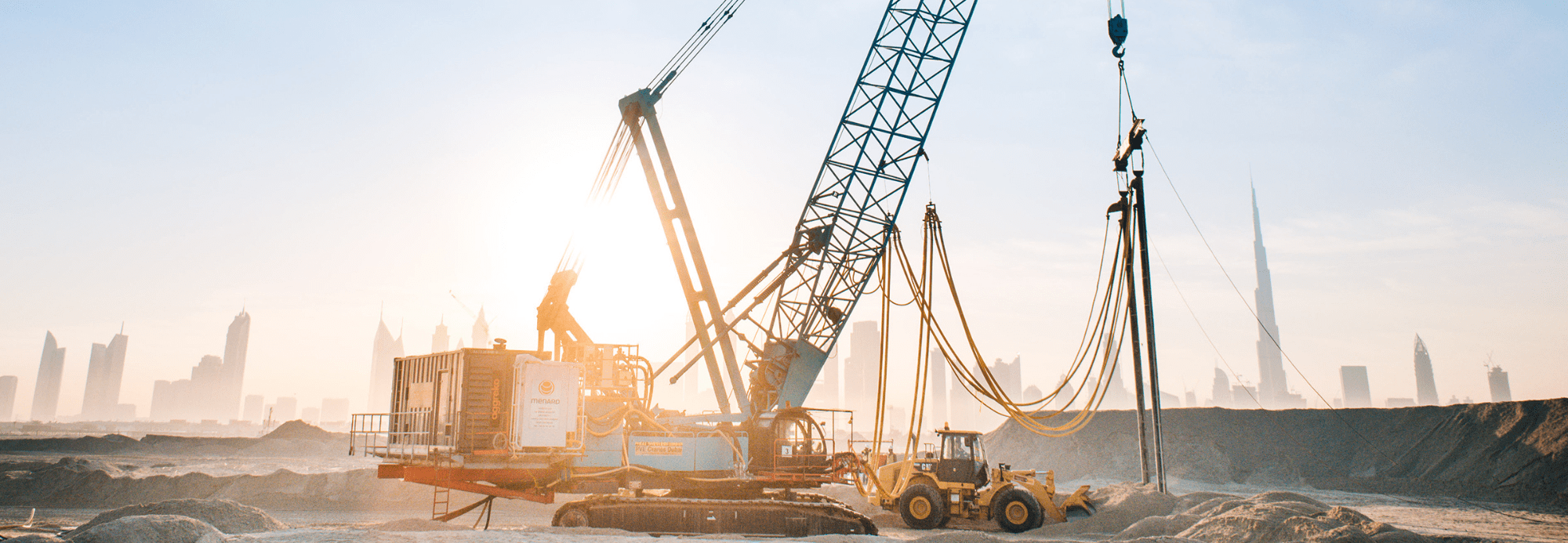

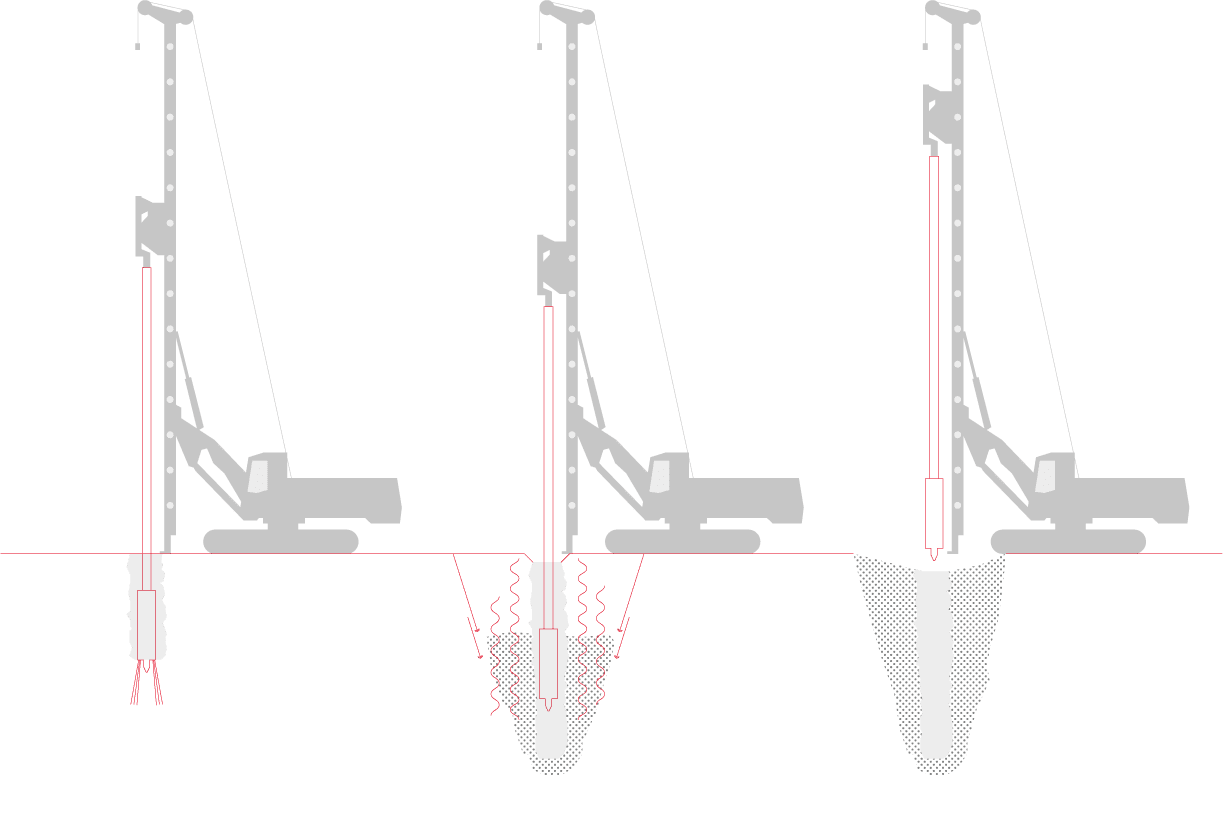

A vibrating probe, usually suspended from a crane or excavator, is lowered into the ground using its own weight. As the probe penetrates deep into the existing soil, it injects high-pressure air and/or water to help the probe move down into the ground until it reaches the desired design depth. The probe is then gradually lifted in successive passes, which produces a cylinder of densified soil. 

How it Works

The Vibro Compaction technique allows the soil particles to rearrange themselves in a much denser formation and, therefore, increases the overall density and strength of the existing soils by significantly reducing any settlement and minimizing any differential settlement. Vibro Compaction has a very wide range of uses and can be used for parking areas, runways, roadways, and many other types of areas requiring ground improvement for a solid foundation. 
